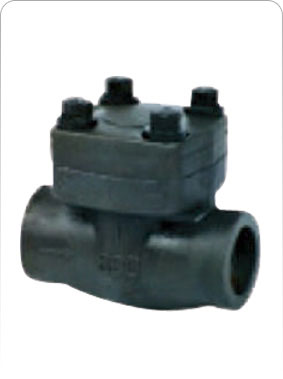

Forged Steel Check Valve

Forged Steel Check Valve

Forged Steel Check Valve
Parts List
Parts Material
Body ASTM A 105
Bonnet ASTM A 105
Seat AISI 410
Valve AISI 410
Stem AISI 410
Body Bolts ASTM A 193 B 7
Gasket SPW - SS 304 - CAP

APPLICABLE STANDARDS :
MANUFACTURING STANDARD :   BS 5352 MSS SP 84
SOCKET WELD :   ANSI B 16.11
SCREWED :   NPT- ANSI B 2.1, BSPT- BS21
BW ENDS TO :   ANSI B 16.25
TESTING STANDARD :   API 598

TEST PRESSURE
SHELL :   3000 psig
SEAT :   2000 psig AIR-80 PSIG

SIZE 15 20 25 40 50
L 85 92 106 122 140
H 60 66 72 102 108
ØB 21.7 27 33.8 48.6 61.1
C 10 13 13 13 16
Forged Steel Check Valve
