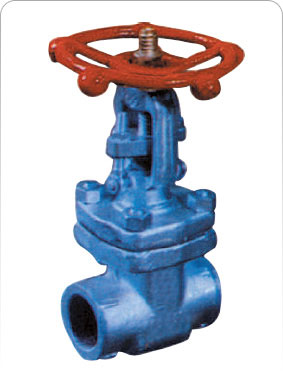

Forged Steel Gate Valve

Forged Steel Gate Valve

Forged Steel Gate Valve
The standard Body / Bonnet material is of ASTMA 105 Body/Bonnet ingrades F-304/ F-316/F-304L/F-316L Etc. Trim : 304/316/Stellite etc available to suit requirements.

Also available in 1500# & 2500#

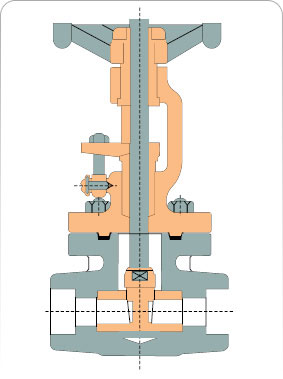

Parts List
Parts Material
Body ASTM A 105
Bonnet ASTM A 105
Seat AISI 410
Wedge AISI 410
Spindle AISI 410
Body Bolts ASTM A 193 B 7
Gasket SPW-SS 304-CAF
Gland Packing Asbestos Graphited With Inconel Wire/to Suit Service
Gland Bush AISI 410
Eye Bolt ASTM A 193 B 7
Gland Elange ASTM A 105
Eye Bolt's Nuts AST A 194 2 H
Wheel Malleable Iron/carbon Steel

APPLICABLE STANDARDS :
MANUFACTURING STANDARD :   BS 5352 MSS SP 84
SOCKET WELD :   ANSI B 16.11
SCREWED :   NPT- ANSI B 2.1, BSPT- BS21
BW ENDS TO :   ANSI B 16.25
TESTING STANDARD :   API 598

TEST PRESSURE
SHELL :   3000 psig
SEAT :   2000 psig AIR-80 PSIG

  SOCKET END
SIZE 15 20 25 40 50
L 85 92 106 122 140
H 157 160 175 240 252
H1 170 177 198 277 297
ØWh 80 80 95 150 150
ØB 21.7 27 33.8 48.6 61.1
C 10 13 13 13 16
Forged Steel Gate Valve
