Lift Type Non Return Valve

Lift Type Non Return Valve

Lift Type Non Return Valve
Parts List
No.   Parts Material
14 1 Wheel Nut & Washer C.S, TOBS916
13 1 Hand Wheel Malleable Iron
12 2.2 Eye Bolt & Nut C.S. TO IS 41 90
11 - Stud & Nut ASTM A 1 93 Gr. B7 & ASTM A 1 94 Gr. 2H
10 - Gland Packings Asbestos Inconel Wire
09 1 Gasket Asbestos
08 1 Yoke Bush NI - Resist (A 439 D2)
07 1 Gland Flange C.S. TO IS 226
06 1 Gland Bush AISI410
05 1 Spindle AISI410
04 1 Disc (valve) AISI 410 + 1 3% Cr. Steel Facing
03 1 Seat AISI 410 + 1 3% Cr. Steel Facing
02 1 Bonnet/cover C.I.
01 1 Body C.I.

SIZE 25 40 50 65 80 100 125 150 200
PORT 25 40 50 65 80 100 125 150 203
L 152 203 254 290 305 360 400 480 600
H 200 241 270 307 338 363 445 470 585
H1 207 251 283 324 358 388 477 508 635
0Wh 140 160 200 200 230 310 310 310 350
0D 121 140 165 185 205 230 280 305 368.3
T 14.3 17.5 19.1 19.1 22.2 25.4 28.6 28.6 31.8
0J 17.5 17.5 17.5 17.5 17.5 17.5 22.2 22.2 22.2
N 4 4 4 8 8 8 8 12 12
K 87 105 127 146 165 190 235 260.5 323.8
A 80 105 130 145 160 180 215 240 270
P 80 102 115 127 140 150 155 205
Q 90 115 127 140 152 180 203 228
R 231 263 288 293.5 337 401 423 494

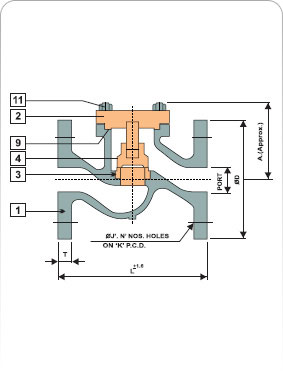

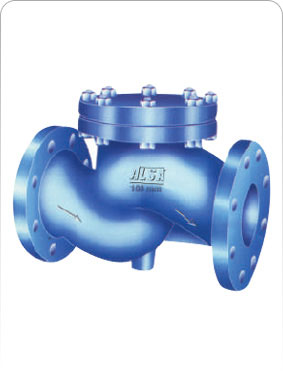

Lift Type Non Return Valve

FLANGE AS PER B.S. 10 TABLE H
MAX. WORKING PRESSURE 13 Kg/cm2
MAX. TEMPERATURE 220°C
ALSO AVAILABLE IN PN-10 & PN-16
